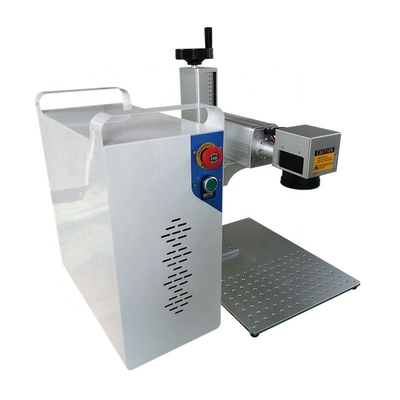

Fiber Laser Marking Machine 30W Raycus ,working size 150*150mm (other working size aviable)
| Model | Fiber Laser Marker |
| Laser Power | 20W 30W 50W Raycus |
| Supports Graphical Format | PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF |
| Beam Quality | M2<2 |
| Power Stability | (8h)<±1%rms |
| Pulse Repetition Frequency | 20KHZ----100KHZ |
| Power Consumed | <800W |
| Minimum Line Width | 50μm |
| Minimum Character | 0.3mm |
| Laser Wavelength | 1064nm |
| Working Size | 110*110mm 150*150mm 200*200mm 300*300mm |
| Whole Machine Power | 500W |
| Cooling Way | Air Cooling |
| Operating Voltage | 110/220V ±10%, 50/60Hz |
| Ambient Operating Temperature | 15℃-35℃ |
| Packing | Plywood Wooden Packaging |
| Red Pointer | Double Red Pointer |
| Galvanometer | Scanleb |
| Filed Lens | Laserhous |
| Laser Source | Raycus |
| Optional | Rotary axis |
| Control system | JCZ (EZcad) |
