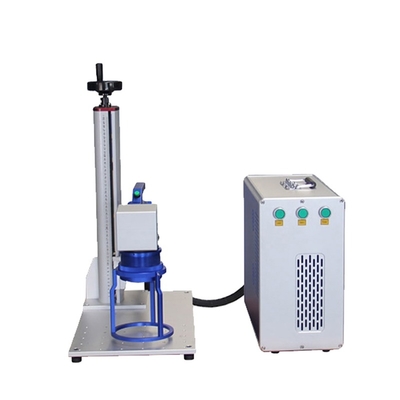

New Design Air-cooled Mini Portable Laser Marker 20W 30W 50W Raycus Fiber Laser Marking Machine QR Code Laser Engraving Machine

1 Set
MOQ
$2,200.00(1 - 2 Sets) $2,100.00(>=3 Sets)
価格
New Design Air-cooled Mini Portable Laser Marker 20W 30W 50W Raycus Fiber Laser Marking Machine QR Code Laser Engraving Machine
特徴 ギャラリー 製品の説明 見積依頼
特徴
仕様
Application: Laser Marking
Working Accuracy: ±0.001mm
Graphic Format Supported: AI, BMP, Dst, DXF, PLT, JPG GIF TIF Etc
Laser Type: Fiber Laser
Condition: New
CNC or Not: Yes
Cooling Mode: Air Cooling
Control Software: EZCAD
Laser Source Brand: RAYCUS
Control System Brand: JCZ
Marking Head Brand: SINO galvanometer
Weight (KG): 65 KG
Key Selling Points: Easy to Operate
Warranty: 2 years
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Marking Area: 110mm*110mm
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Engine, PLC
Mode of Operation: continuous wave
Configuration: stand-alone
Feature: Air-cooled
Laser power: 10W/20W/30W
Minimum Line Width: 0.02mm
Minimum Character: 0.15mm
Laser Wavelength: 1064nm
Divergence: 0.3mard
Q-frequency: 20KHz~30KHz
Working area: 110*110mm /175*175mm/ 200*200mm/300*300mm
Beam Quality: M2:1.2~1.8
Software: EZCAD
Showroom Location: None
基本情報
お支払配送条件
Packaging Details: All machine use plastic cover to avoid damp during the transport. Shipment way we adopt Sea freight, air freight or courier, the most convenient for you. More details please contact us.
Supply Ability: 300 Set/Sets per Month
製品の説明
Product Description


jewellery making machinery gold silver ceramics laser engraving machine


Lansen Laser is the world famous fiber laser marking machine manufacturers and suppliers, recently launched a new laser marking machine: Handheld Fiber Laser Marking Machine . This type of laser marking machine can remove the original fixed bracket and make handheld marking, the laser marking machine mini structure and handheld design can meet a variety of production needs, the laser marking machine is compact and mini size, small footprint, marking speed is twice as the same type of laser. Adopting high quality fiber laser, the core components of the life length up to 20,000-100,000 hours or more, no need of consuming materials Laser marker stainless steel can do quickly and permanently mark of text, picture, serial numbers, bar codes, QR code, etc. for all metal material and part nonmetal material. It mainly use for mark on tools, metal parts, jewelry, firearms and industry polymers. Can be use as animal ear tag laser marking machine, jewelry laser marking machine, led bulb laser marking machine, etc.
Laser Source
Fiber Laser
Output Power
20W/30W/50W/60W/80W/100W
Wavelength
1060nm
Beam Quality
<2
Repeat Frequency
10khz--- 100khz
Pulse Energy
2mJ
Beam Divergence
-0.3 to +0.3mrad
Laser Class
IV
Resolution
18μ
Repeatablility
50μ
Marking Scope
110x110mm/ 200x200mm(optional)/300x300mm(optional)
Linear Speed
800 character/ s
Marking Linear Speed
≤12,000mm/s
Marking Depth
Max. 1.0- 1.5mm (hard steel)
Min. Line Width
0.012mm
Min. Character Size
0.15mm
Repeat Accuracy
±0.003mm
Input Power
0.5kw
Electrical Source
220V /110V Single-Phase Circuit / 50/60Hz /4A
Packing & Delivery
Detailed Image
Certifications


Jinan Lansen Laser Equipment Co., Ltd

Jinan Lansen Laser Equipment Co., Ltd was established in 2010. We are located in Jinan city, Shandong, P.R. China, where is the CNC and Laser equipment production base. We commit ourselves to the development of CNC and Laser technologies always. We now produce more than 40 models CNC and Laser equipment, includes Laser marking machine, Laser Engraving machine, Laser Cutting machine, CNC Router, CNC Plasma Cutting machine and so on.
Our Laser Marking machine includes Co2 Laser Marking machine which used for nonmetal material mark and cut, Fiber Laser Marking machine which used for metal and some nonmetal mark and cut; Our Laser Engraving Cutting machine are also widely used in various fields, like art craft engraving cutting, stone engraving, cloth, leather and textile cutting, metal cutting, hobby and so on.
Our CNC Router is a more applied equipment for Industry. They are mainly used in woodworking and advertising lines. Then our CNC Plasma Cutting machine is mainly used in metal cutting work. Our machines are welcomed worldwide and have exported to USA, Canada, Brazil, Panama, Ecuador, Peru, Chile, UK, Russia, Finland, Poland, France, Germany, Switzerland, Danmark, Italy, France, Spain, Estonia, Czech, Slovakia, Slovenia, Greece, Turkey, Australia, India, Tailand, Barlin, Hungry, Kazakhstan, Malaysia, Sri Lanka, Indonesia, Egypt and so on countries.
Jinan Lansen Laser Equipment Co., Ltd is with our own production line and export operations right, products provided by us directly, with shorter delivery time, longer warranty time, and OEM service is accepted; Without intermediate business, price better; various models and completely functions to meet various clients' requirement; Honest enterprise, can guarantee the quality, make the buyers more rest assured. LANSEN Brand promise to supply HIGH quality products support you on expanding the market. At the same time, we also provide OEM service.If you wish products with your own brand, if you need a more personalized type machine. The OEM service could provide you nice experience. We wish we can establish long business cooperation relationship.

FAQ
--------------------------------------------------------------------------------------

Q: How can I choose suitable machine? A: Please communicate with us via inquiry or email, we can guide you. Please kindly tell us: 1) .What work table size you will need? 2).What work you will do?
Q: What's your payment terms? Delivery time and MOQ? A: We accpet T/T(bank transfer), L/C, Paypal, Western union etc. Usually we need 30% as deposit, balance paid before shipment. Delivery Time: 3-5 days after payment MOQ: 1set
Q: If I bought a machine, how could you make it safe while shipping. A: We have a professtional package suitable for oversea transpotation. Machine will be fixed well in the case.
Q: What's your quality control system? A: All machines will be tested after finished. We have QC department response for this job. And we already got CE approved.
Q: If I don't know how to use the machine, can you teach me? A: 1) There is a DVD disc including machine user manual and software user manual c/w machine. 2) Online (skype & phone) 3) Remote desktop software (Teamviewer) 4) Demo Video
