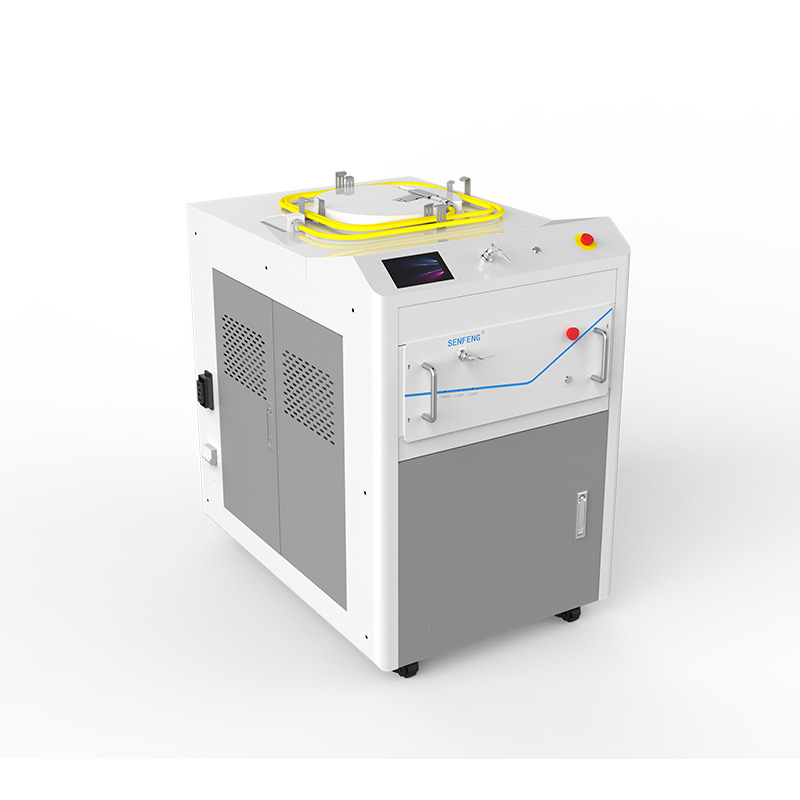

Fiber Laser Welding Machine 1000W and 1500W SF1000WHWM-A
1. Technical Parameters
Model | SF1000HWM-A handheld laser welding machine |
Laser device | 1000W |
Laser wave length | 1080nm |
Welding speed range | 0-120mm/s |
Welding gap | ≤1/5 of the thickness of sheet metal |
Fiber cable length | 10m |
Cooling mode | Water cooling |
Voltage | 380V/50HZ |
Consumable | Nitrogen welding, output pressure 0.2Mpa |
Total power | 6KW |
Dimensions | 1300X650X1100mm |
Total weight | 150KG |
2. Application
Laser welding machine is not only used for welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, but also for welding various materials, such as copper-brass, titanium-gold, titanium-molybdenum, nickel-copper and so on.
1. Welding material
Laser welding machine is not only used for welding stainless steel, aluminum, copper, gold, silver, chromium, nickel, titanium and other metals or alloys, but also for welding various materials, such as copper-brass, titanium-gold, titanium-molybdenum, nickel-copper and so on.
2. Welding range:0.5~4mm carbon steel,0.5~4mm stainless steel,aluminium alloy 0.5~2mm,brass 0.5~2mm(1000w);
Welding range:0.5~5mm carbon steel,0.5~5mm stainless steel,aluminium alloy 0.5~4mm,brass 0.5~2mm(1500w)
3. Unique welding function:Hand-held welding can meet the requirements of square tube welding, round tube butt welding, plate tube welding,etc. The machine can be customized for all types of tooling.
3. Sample Pictures
4. Factory Pictures
